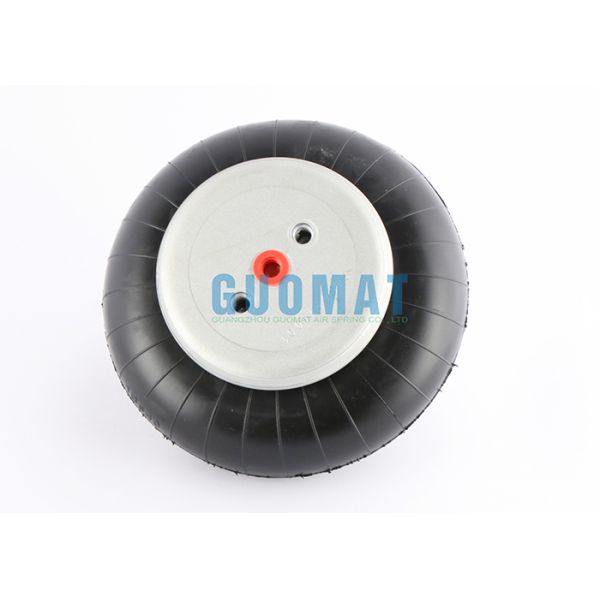

Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag
Product Details
Type: Single Convoluted Air Suspension Airbag
Brand: GUOMAT
Model: 1B7451
Condition: Brand New
Material: Rubber + Steel
Warranty:12 Months
Delivery Time : About 2 - 8 Working Days After Receiving Your Payment
Technical Data
Top cover plate diameter: 4.50 inch
Air fitting: 1/4NPF
Threaded hole on top cover plate: 2pcs 3/8-16UNC
Center distance between top cover plate threaded holes: 1.75 inch
Center distance between bottom cover plate threaded holes: 1.75 inch
Bottom cover plate diameter: 4.50 inch
Threaded hole on bottom cover plate: 2pcs 3/8-16UNC
The rubber bellows max.outer diamater: 8.1inch
Max.height: 6 inch
Min.height: 2.1 inch
| Assembly Height(in.) | Volume @100PSIG(in3) | Pounds Force |
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG |
| 4.0 | 117 | 390 | 810 | 1240 | 1700 | 2160 |
| 3.0 | 91 | 490 | 1010 | 1540 | 2090 | 2650 |
| Dynamic Characteristics at 4.5 in. Design Height |
| Volume@100PSIG=128in3 | Natural Frequency |
| Gage Pressure(PSIG) | Load (Ibs.) | Spring Rate(Ibs./in.) | CPM | HZ |
| 40 | 650 | 554 | 173 | 2.88 |
| 60 | 1010 | 795 | 167 | 2.77 |
| 80 | 1390 | 1046 | 162 | 2.71 |
| 100 | 1790 | 1294 | 160 | 2.66 |
OEM Number / Cross Reference Number
FIRESTONE W01-358-7451
FIRESTONE W01 358 7451
FIRESTONE W013587451
FIRESTONE WO1-358-7451
FIRESTONE WO1 358 7451
FIRESTONE WO13587451
Blind nuts,1/4NPT
W01-358-7451 / W01 358 7451 / W013587451
WO1-358-7451 / WO1 358 7451 / WO13587451
Blind nuts,3/4NPT
W01-358-7484 / W01 358 7484 / W013587484
WO1-358-7484 / WO1 358 7484 / WO13587484
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
W01-358-0112 / W01 358 0112 / W013580112
WO1-358-0112 / WO1 358 0112 / WO13580112
Rubber Bellows Only
W01-358-0100 / W01 358 0100 / W013580100
WO1-358-0100 / WO1 358 0100 / WO13580100
